Precision TAG Pneumatic Angular Gripper With Sensor Interfaces Hose Free Connection

  • 1
  • 2

Brand Name : Hyclamavin

Model Number : TAG

Certification : ISO9001

Place of Origin : China

MOQ : 1 pce

Price : USD30.00-1360.00/PC

Payment Terms : L/C, T/T

Supply Ability : 1000 pcs per month

Delivery Time : 4-6 weeks

Packaging Details : Carton Case

Actuation : Pneumatic

Jaw Style : Parallel

Gripping Force : 100 N

Gripping Action : Angular

Product Model : Angular

Operating Pressure : 0.5-0.7 MPa

Weight : 0.2 kg

Mounting Type : Direct Mount

Jaw Opening : 10 mm

Maximum Pressure : 0.8 MPa

Maximum Speed : 500 mm/s

Product Type : Pneumatic Gripper

Operating Temperature : 0-60°C

Material : Aluminum

Contact Now

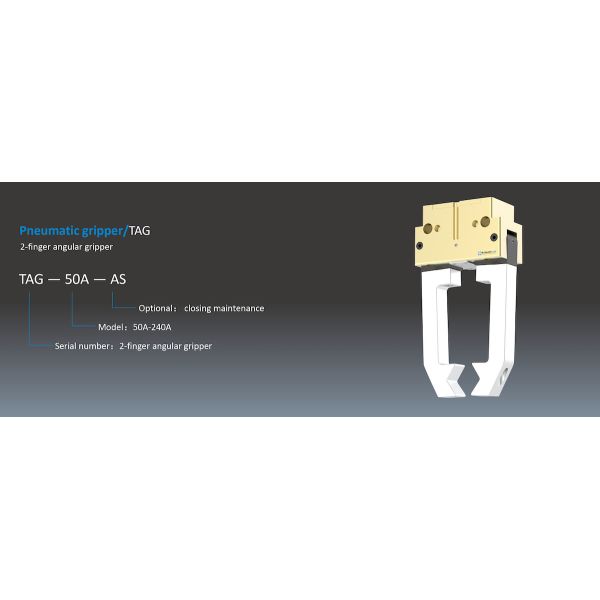

2-Jaw Pneumatic Angular Gripper TAG

High Precision TAG Grippers with Sensor Interfaces and Hose-Free Connection

Product Information

Precision TAG Pneumatic Angular Gripper With Sensor Interfaces Hose Free Connection

Excellent performance

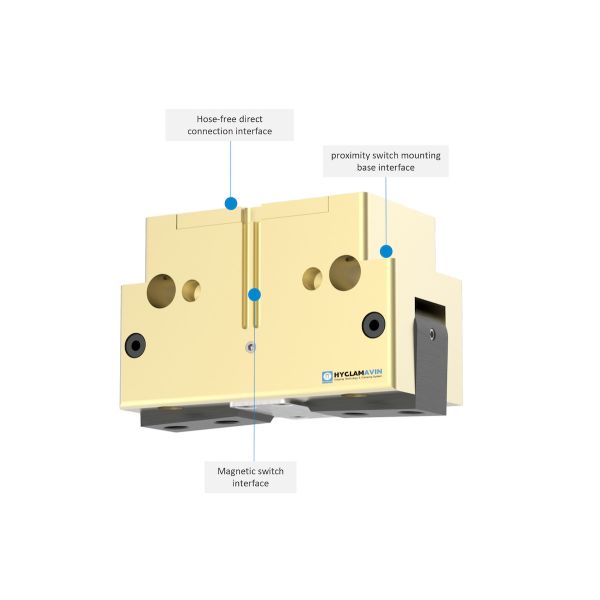

1. The TAG grippers offer multiple sensor and pneumatic interface options.

● Ensures stable gripping force over time
● Suitable for tight spaces and fast cycle operations
● Equipped with magnetic switch interface
● Enables hose-free direct connection
● Includes reserved base interface for proximity switch mounting​

Precision TAG Pneumatic Angular Gripper With Sensor Interfaces Hose Free Connection

Model and Technical Parameters

Model Opening/closing angle per jaw[°] Closing moment[Nm] Closing moment generated by spring[Nm] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protect ion class IP
TAG-50A 15/3 3.28 0.13 0.4 0.06/0.06 0.02 30
TAG-50A-AS 15/3 4.14 0.86 0.17 0.4 0.06/0.10 0.02 30
TAG-64A 15/3 6.82 0.24 0.65 0.07/0.07 0.02 30
TAG-64A-AS 15/3 9.37 2.55 0.33 0.65 0.07/0.13 0.02 30
TAG-80A 15/3 12.6 0.38 0.97 0.08/0.08 0.02 30
TAG-80A-AS 15/3 16.9 4.3 0.48 0.97 0.08/0.15 0.02 30
TAG-100A 15/3 23.1 0.76 1.4 0.12/0.12 0.02 30
TAG-100A-AS 15/3 31.2 8.1 0.95 1.4 0.12/0.18 0.02 30
TAG-125A 15/3 57.2 1.34 2.78 0.14/0.14 0.02 30
TAG-125A-AS 15/3 72.2 15 1.83 2.78 0.14/0.20 0.02 30
TAG-160A 15/3 100 2.1 3.86 0.16/0.16 0.02 30
TAG-160A-AS 15/3 129 29 3.1 3.86 0.16/0.22 0.02 30
TAG-200A 15/3 252 4.85 8 0.32/0.32 0.02 30
TAG-200A-AS 15/3 318 66 6.95 8 0.25/0.40 0.02 30
TAG-240A 15/3 440 7.7 11.5 0.32/0.32 0.02 30
TAG-240A-AS 15/3 580 140 11.2 11.5 0.30/0.50 0.02 30
